Raspberry Pi 5
All In One
Python Coding, Circuits, and PCB Design — All in One Kit!
Model: SOFTBOX-RPK-01 | For: Middle/High School, University, Makerspace
Request a Quote → ⬇ Download Brochure
Overview
Product Overview
The Raspberry Pi 5 All In One is a comprehensive education kit that lets learners master Python coding, electronic circuit design, and PCB fabrication — all with a single kit. It is the ultimate choice for experiencing the real-world product development process and growing into a professional maker from day one.

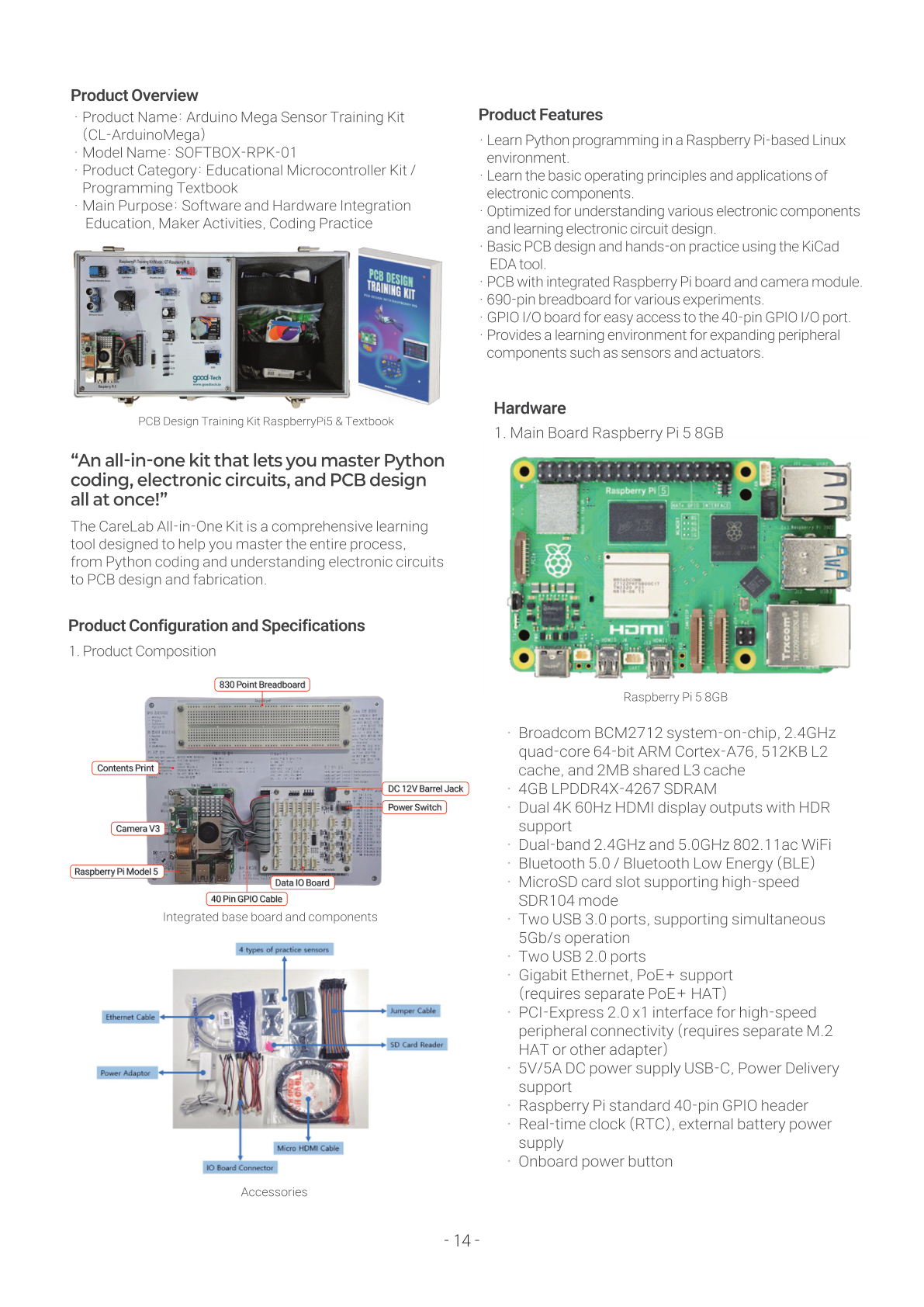

The kit integrates a Raspberry Pi 5 8GB board with Camera Module V.3 on a unified PCB, paired with a 690-pin breadboard and a 40-pin GPIO IO board. In the Linux environment, learners progress from Python programming and electronic component theory to KiCad EDA PCB design — a systematic, step-by-step journey through the complete embedded systems development cycle.
Three professional textbooks (20 chapters) covering Raspberry Pi Python Mastery, Electronic Circuits, and PCB Design & Fabrication are included together with full hands-on source code.
Learning Roadmap
3-Stage Learning Roadmap
Build skills progressively — from Python coding through electronic circuits to physical PCB manufacturing — in a structured three-stage journey.
Stage 1
Python Coding & Raspberry Pi
Python fundamentals on the Raspberry Pi, GPIO control for LEDs and sensors, mastering the core principle of software driving hardware
Stage 2
Electronic Components & Circuits
Working principles of resistors, transistors, and more; build circuits on a breadboard directly; deepen understanding of physical hardware behavior
Stage 3
KiCad PCB Design & Fabrication
PCB design with KiCad EDA, ordering manufactured PCBs, and completing the full product assembly process
Features
Product Features

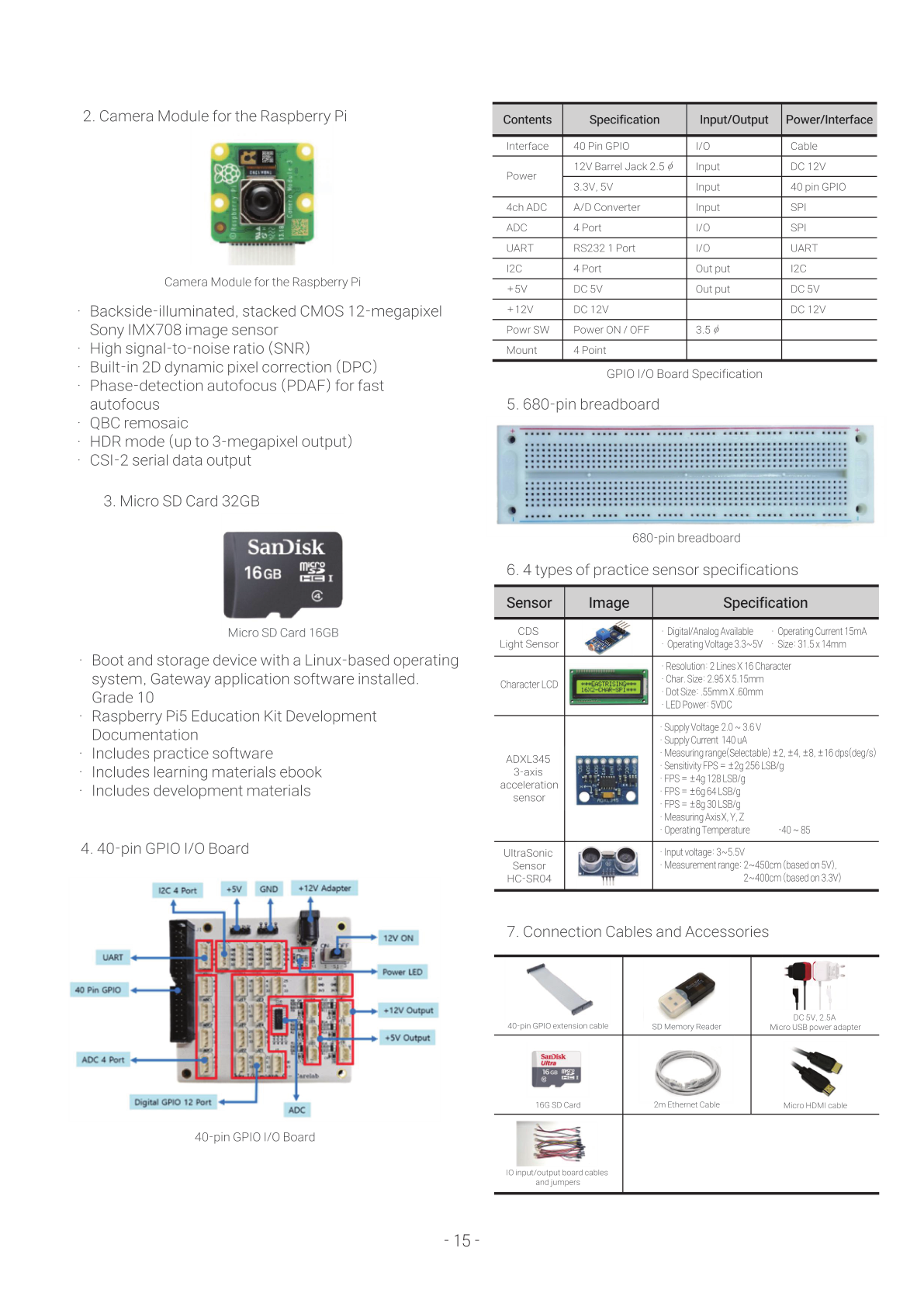

Package Contents
What's in the Box
- Raspberry Pi 5 8GB
- Camera Module V.3
- Integrated PCB (with heatsink)
- 690-pin Breadboard
- 40-pin GPIO IO Board
- 40-pin GPIO extension cable
- SD Memory Card Reader
- DC 5V, 5A USB-C Power Supply
- 16GB SD Card
- 2m Ethernet Cable
- Micro HDMI 2.0 Cable
- IO Board cables and jumpers
Raspberry Pi Integrated PCB: 100 × 65 × 15mm · IO Board: 65 × 30 × 10mm
690-pin Breadboard: 165 × 55 × 8.5mm
Packaging: 200 × 150 × 70mm · Total Weight: approx. 500g
Hardware Specs
Hardware Specifications
Raspberry Pi 5 8GB
| Processor | Broadcom BCM2712, 2.4GHz Quad-core 64-bit ARM Cortex-A76 |
| Memory | 8GB LPDDR4X-4267 SDRAM |
| Wi-Fi | 2.4GHz & 5.0GHz 802.11ac WiFi |
| Bluetooth | Bluetooth 5.0 / BLE |
| Camera | MIPI CSI (Camera Module V.3, Sony IMX708) |
| GPIO | 40-pin, 3.3V output |
| Power | 5V DC (USB-C connector), max 3A |
| Ports | USB 2.0/3.0, HDMI, Ethernet, MIPI DSI/CSI |
Software
| OS | Debian 12.8 Bookworm GNU/Linux, Fedora, Arch Linux ARM, RISC OS |
| Compiler | GNU gcc 12.2 / Python 3.11.2 |
| Drivers | I2C, SPI, Camera, GPIO, Wi-Fi, Bluetooth, MQTT |
| Source Code | Full C, C++, Python GPIO hands-on source code provided |
Curriculum

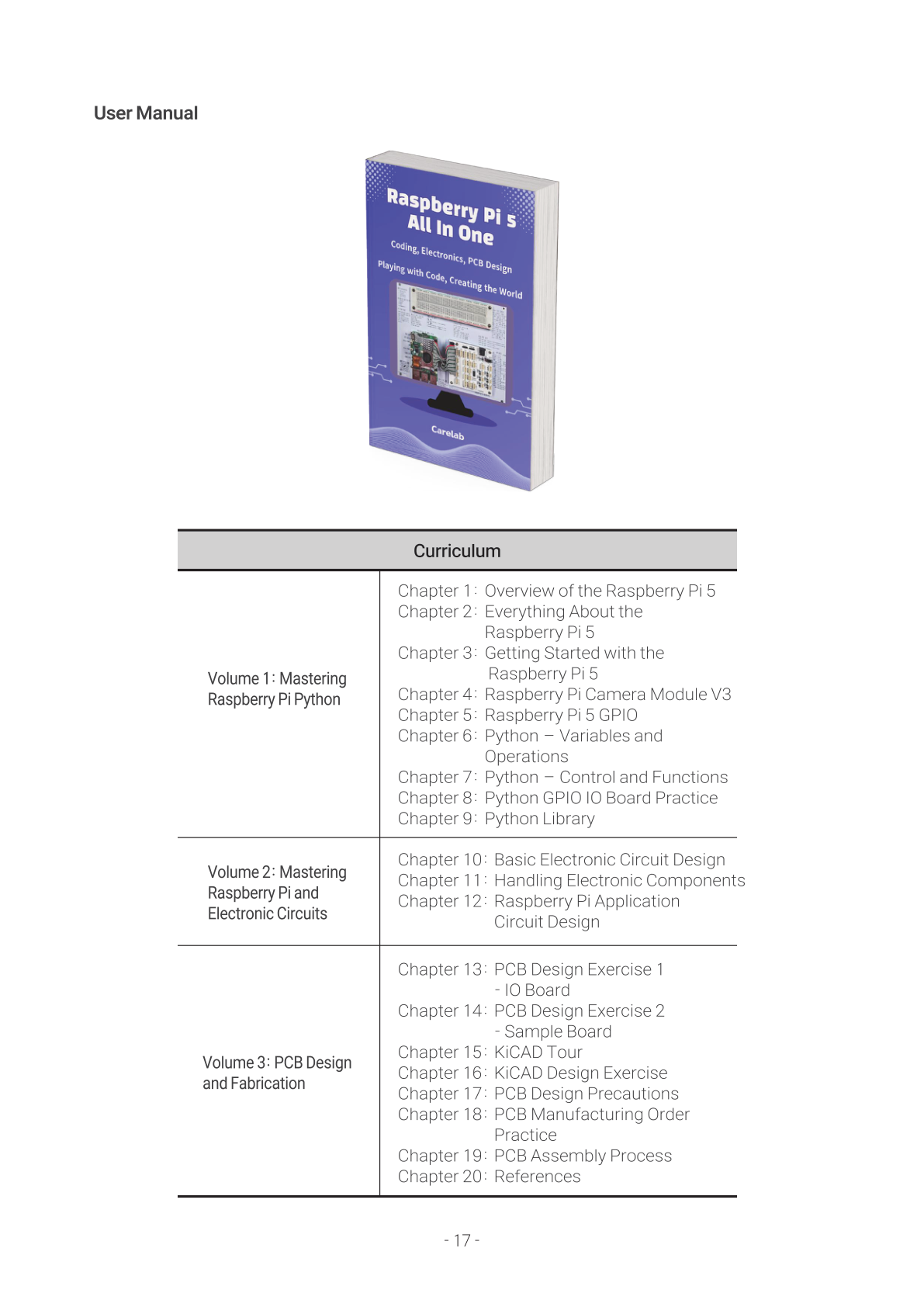

Curriculum — 3 Volumes, 20 Chapters
A professional, progressively deepening curriculum from Raspberry Pi Python mastery through complete PCB manufacturing.
- Ch. 1 Raspberry Pi 5 Overview
- Ch. 2 Everything About Pi 5
- Ch. 3 Getting Started with Raspberry Pi 5
- Ch. 4 Camera Module V.3
- Ch. 5 Raspberry Pi 5 GPIO
- Ch. 6 Python — Variables & Operators
- Ch. 7 Python — Control & Functions
- Ch. 8 Python GPIO IO Board Lab
- Ch. 9 Python Libraries
- Ch. 10 Electronic Circuit Design Fundamentals
- Ch. 11 Electronic Component Handling
- Ch. 12 Raspberry Pi Application Circuit Design
- Ch. 13 PCB Design Exercise 1 — IO Board
- Ch. 14 PCB Design Exercise 2 — Sample Board
- Ch. 15 KiCAD Tour
- Ch. 16 KiCAD Design Practice
- Ch. 17 PCB Design Precautions
- Ch. 18 PCB Manufacturing Order Practice
- Ch. 19 PCB Assembly Process
- Ch. 20 References
Inquiry & Quote Request
We support bulk purchasing for schools, institutions, and makerspaces, as well as educational program consulting.
Contact Us Send Email
