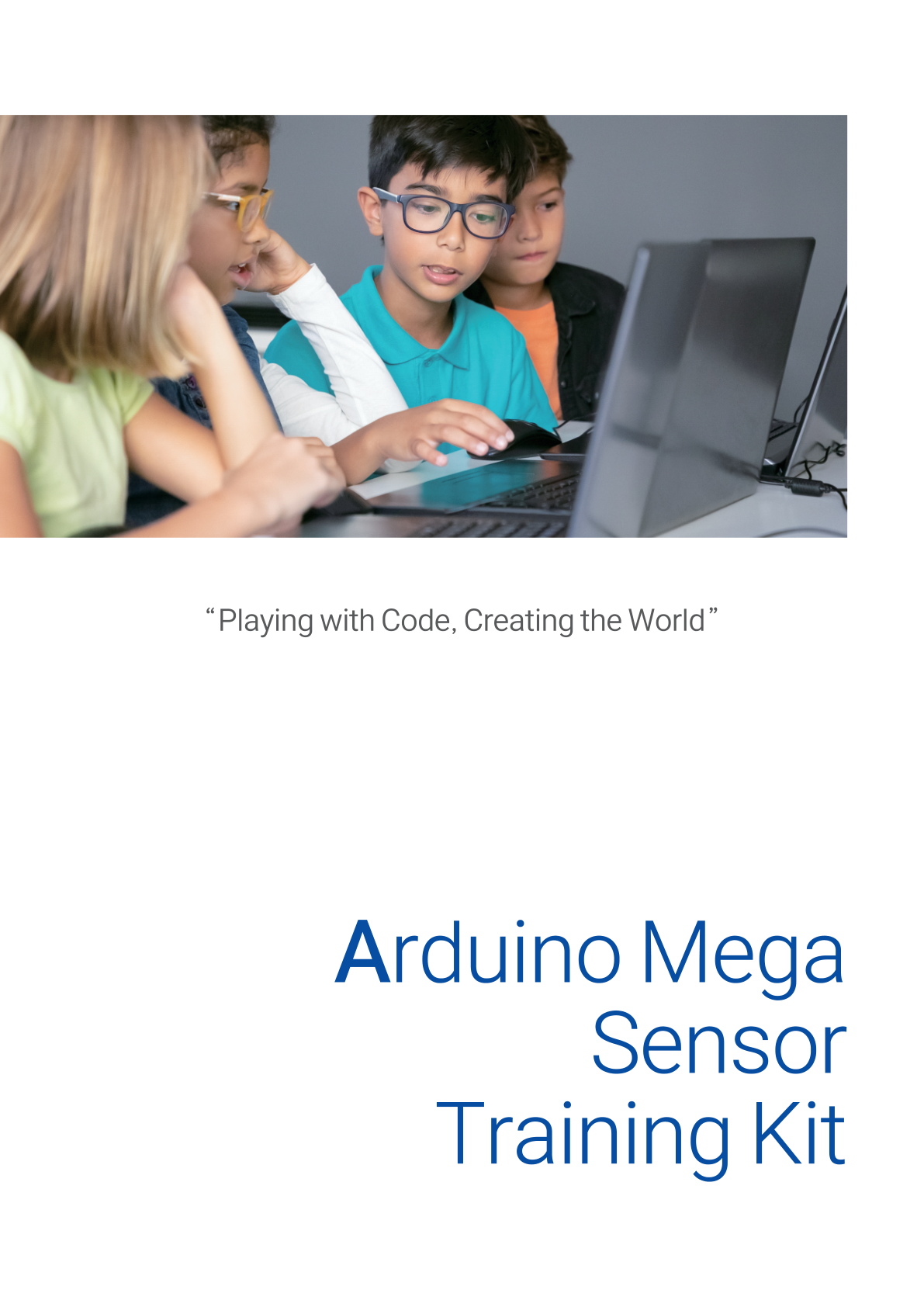

Arduino Mega
Sensor Training Kit
Playing with Code, Creating the World
Model: CL-ArduinoMega | For: Middle/High School, University, Makerspace
Request a Quote → ⬇ Download Brochure

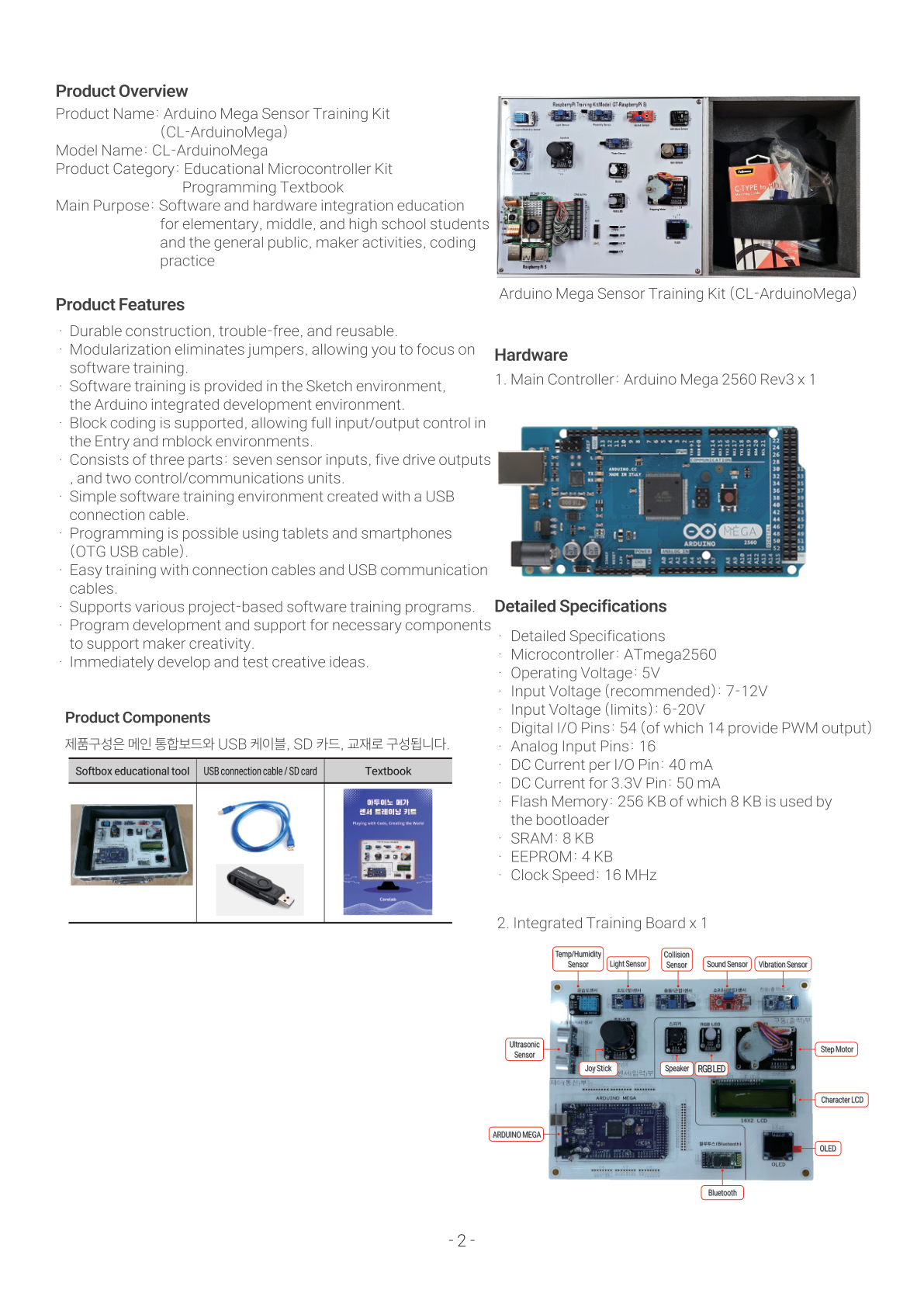

Overview
Product Overview
The Arduino Mega Sensor Training Kit is a physical computing education tool that integrates 7 environmental sensor inputs, 5 actuator outputs, and 2 communication control modules onto a single, robust PCB. Designed around the Arduino Mega 2560 platform, it eliminates the need for jumper wires and breadboards entirely.
Have you found coding too complex, or lost interest in purely theoretical coursework? The Arduino Mega Training Kit solves these challenges at once. It is the ultimate tool for sparking passion in coding and maker activities, delivering tangible, hands-on results from the very first session.
Simply connect via a single USB cable and start coding immediately — no wiring required. The kit fully supports Scratch, Entry, mBlock block coding environments as well as the Arduino IDE for text-based C programming.
Core Components
3 Core Functional Zones
Sensor Input, Actuator Output, and Communication Control — all three zones are integrated on one PCB for immediate, wire-free hands-on practice.
Sensor Input (7 Types)
- Environmental smart sensors
- Object detection technology
- Smart vision sensor
- Health monitoring sensor
Actuator Output (5 Types)
- Sensor value processing
- Lamp, fan, robot arm control
- Wheel, motor, switch control
- Power-efficient design
Communication Control (2 Types)
- Wireless communication
- Multiple internet connectivity
- Smart device integration
- IoT device communication
Features
Product Features
Engineered for durability and optimized for repeated classroom use, with support for diverse coding environments.
Package Contents
What's in the Box
Everything needed for hands-on coding education, centered around the Softbox educational PCB.
| Category | Item | Qty |
|---|---|---|
| Main Board | Softbox Education Tool (CL-ArduinoMega PCB) | 1 |
| Connection Cable | USB Type A-B Cable | 1 |
| Storage | SD Card | 1 |
| Textbook | Arduino Mega Sensor Development Board Textbook | 1 |
Case shape may vary by specification.
PCB Board: 290 × 250 × 50 mm
Packaging: 300 × 260 × 70 mm | Weight: approx. 1 kg
Specifications
Electrical & Technical Specifications
Powered by the Arduino Mega 2560 Rev3, a high-performance 8-bit microcontroller with extensive I/O capabilities.
Arduino Mega 2560 Rev3
| Microcontroller | ATmega2560 (8-bit AVR RISC) |
| Operating Voltage | 5V |
| Input Voltage (Recommended) | 7V – 12V |
| Input Voltage (Limit) | 6V – 20V |
| Digital I/O Pins | 54 pins (14 with PWM support) |
| Analog Input Pins | 16 pins |
| I/O Pin Current | 40mA per pin / 50mA (3.3V pin) |
| Flash Memory | 256KB (8KB used by bootloader) |
| SRAM | 8KB |
| EEPROM | 4KB |
| Clock Speed | 16MHz |
| Connection Cable | USB Type A-B (Printer Cable) |

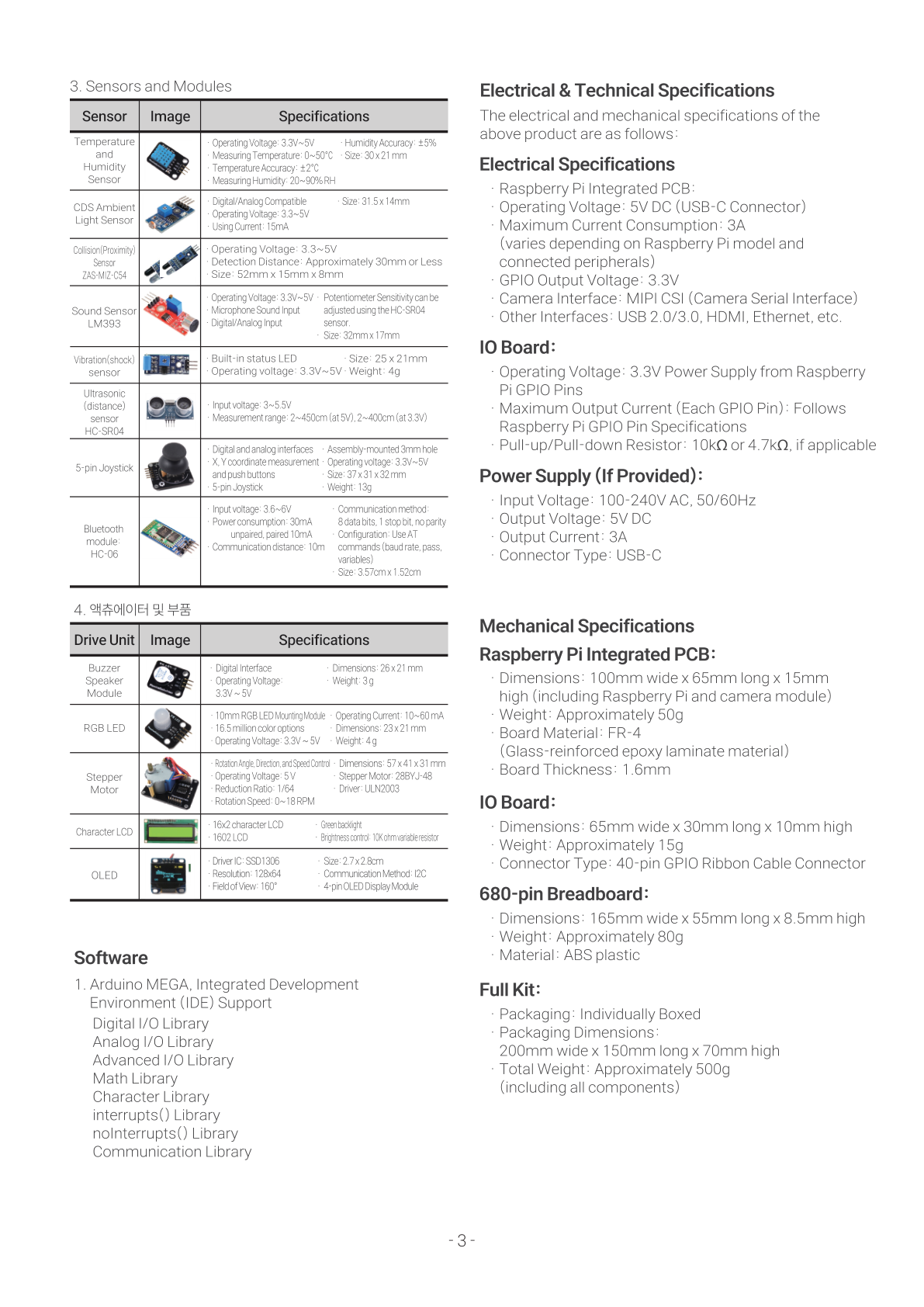

Sensors & Modules
Included Sensors & Modules
14 sensors and modules are integrated directly on the PCB — no additional wiring needed, ready to use immediately.
Temperature & Humidity Sensor
Operating voltage: 3.3V–5V
Temp: 0–50°C (±2°C)
Humidity: 20–90% RH (±5%)
Size: 30 × 17mm
Light Sensor (CDS)
Analog output
Operating voltage: 3–5V
Current: 15mA
Size: 31.5 × 14mm
Ultrasonic Sensor (HC-SR04)
Operating voltage: 3–5.5V
Range: 2–400cm
Size: 45 × 20mm
Joystick
X, Y analog + push button
Operating voltage: 3.3V–5V
Size: 37 × 31 × 32mm
Speaker (Buzzer)
Operating voltage: 3.3V–5V
Max current: 10mA
Size: 28 × 21mm
RGB LED
10mm full-color LED module
Operating voltage: 3.3V–5V
Size: 23 × 21mm
Stepper Motor (28BYJ-48)
Operating voltage: 5V
Resolution: 1/64
Size: 37 × 41 × 31mm
Character LCD (16×2)
16×2 character display
I2C interface
Model: 16M0501
OLED Display (0.96")
Driver: SSD1306
Resolution: 128×64
I2C, Size: 27 × 28mm
Bluetooth Module (HC-06)
Operating voltage: 3.6–6V
Range: 10m
Current: 30mA (standby)

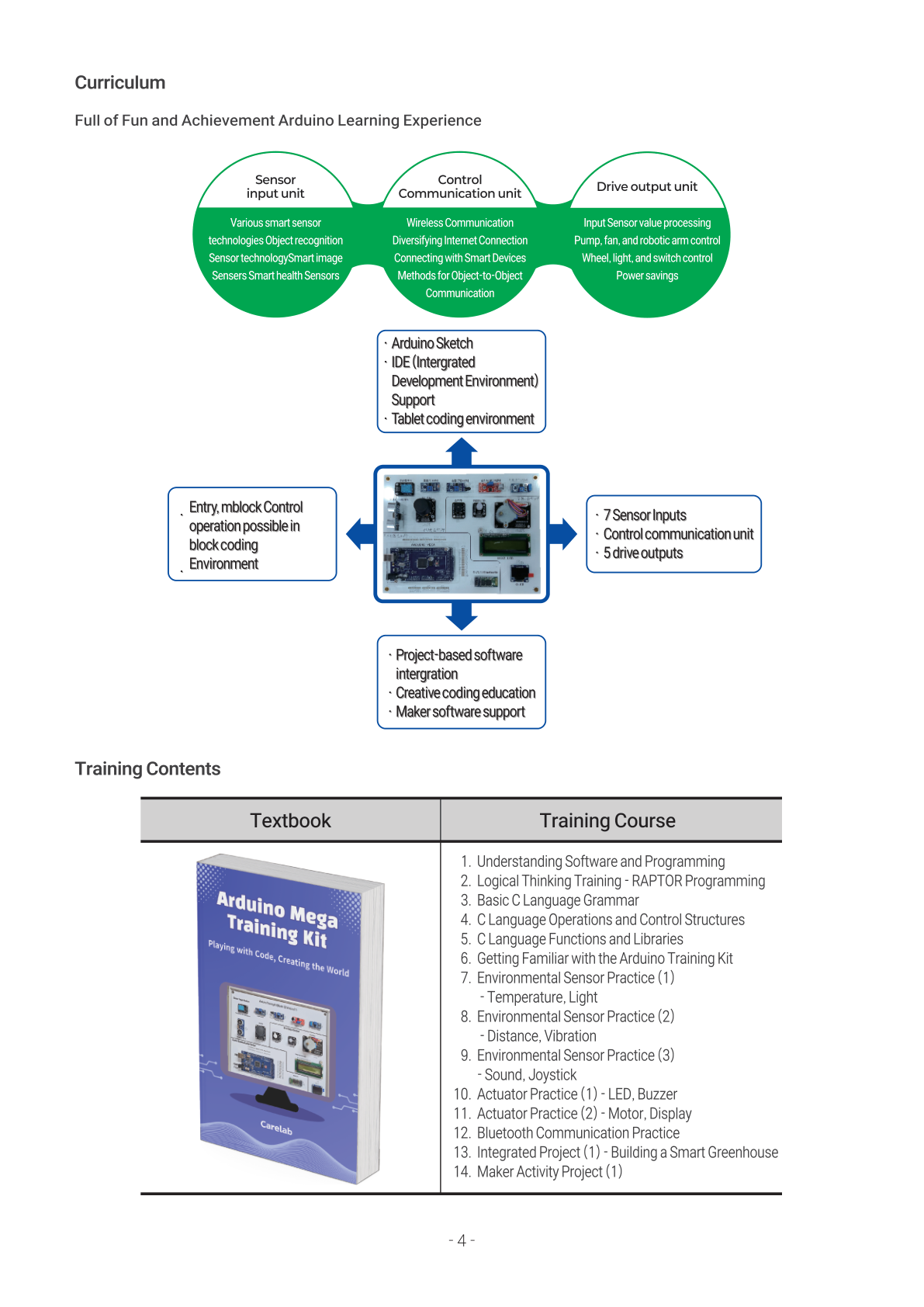

Curriculum
Curriculum (14 Chapters)
A structured 14-chapter curriculum covering software fundamentals through an integrated Smart Greenhouse capstone project.
Software
Software Support
Full support for both text-based and block-based coding environments to accommodate all skill levels.
Inquiry & Quote Request
We support bulk purchasing for schools, institutions, and makerspaces, as well as educational program consulting.
