GT-RaspberryPi5

Raspberry Pi 5
Training Kit

Playing with Code, Creating the World

Model: GT-RaspberryPi5  |  For: Middle/High School, University, Makerspace

Request a Quote → ⬇ Download Brochure
Raspberry Pi 5 Training Kit

Overview

Product Overview

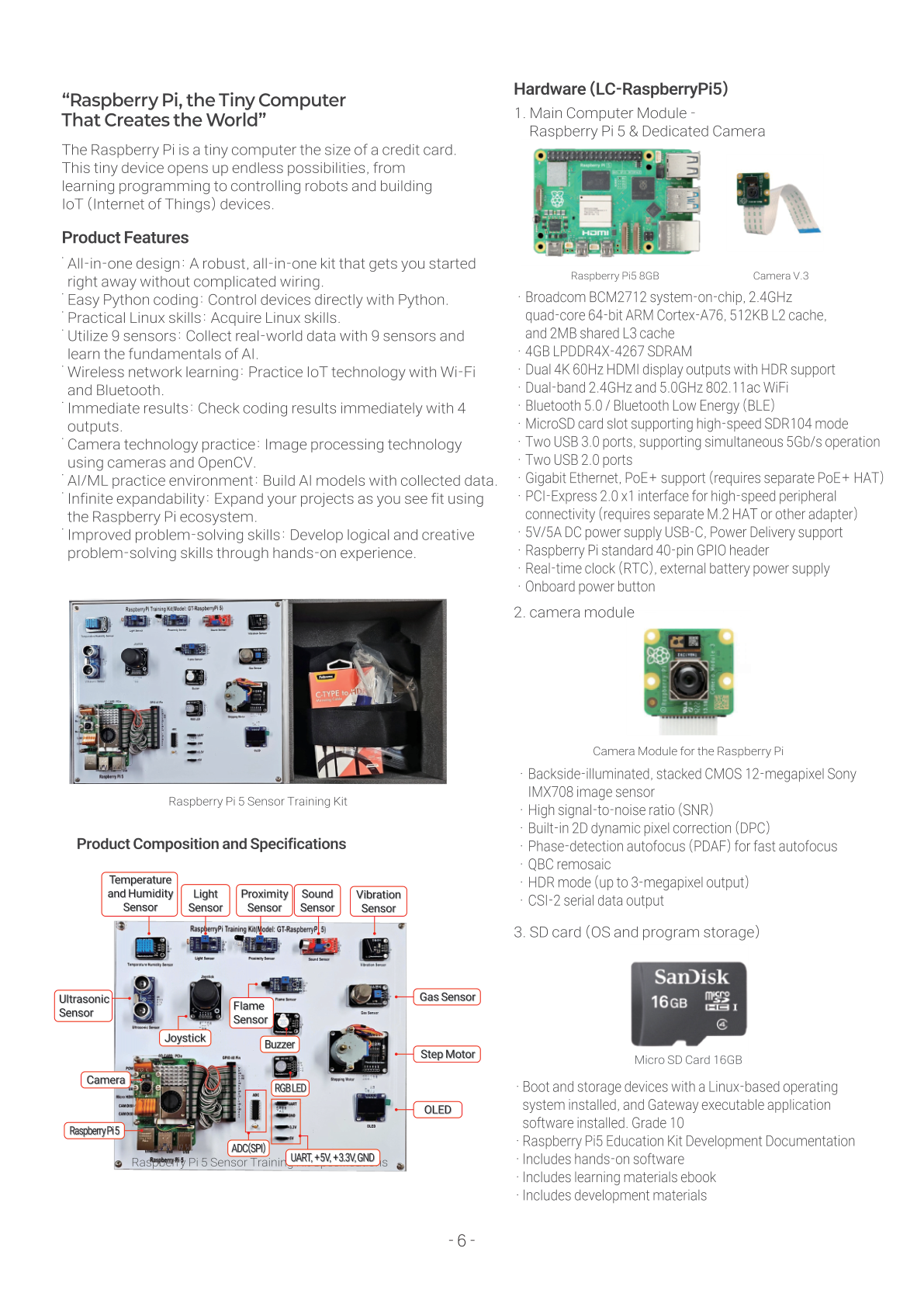

Raspberry Pi 5 Training Kit Board Layout

The Raspberry Pi 5 Training Kit is an integrated PCB-based education platform featuring 5 environmental sensors, a dedicated sensor interface board for the Raspberry Pi, 5 output control panels, and 4 actuator modules. Everything is pre-wired on the PCB — no jumper cables required.

Raspberry Pi has sold over 30 million units worldwide and is the optimal platform for learning how software transforms the world. The Raspberry Pi 5 Training Kit builds on this legacy as a comprehensive education solution — enabling systematic study of hardware control, IoT, computer vision, and AI.

The curriculum progresses from Linux-based GPIO control through OpenCV camera image processing to Deep Learning AI inference — a step-by-step journey from fundamentals to cutting-edge applications.

Education Areas

4 Core Education Areas

A systematically deepening curriculum — from foundational coding to AI and IoT projects — structured for progressive mastery.

🐧

Linux-Based IoT

IoT hands-on systems, Linux commands, network control, MQTT integration

💻

C · Python · Java · Web

Multi-language programming, GPIO control, sensor data processing, web service development

📷

OpenCV Image Processing

Camera vision labs, object recognition, color detection, image analysis projects

🤖

Deep Learning AI

AI training systems, data collection & analysis, AI classification model implementation

Features

Product Features

Robust construction and comprehensive software support — optimized for intensive, repeated educational use.

Integrated PCB design — sensors and actuators accessible without any jumper wires
Raspberry Pi 5 8GB with Camera Module V.3 built-in
GPIO control via C, C++, and Python hands-on source code
Linux OS with Wi-Fi, Bluetooth, and MQTT drivers pre-installed
Full I2C, SPI, camera, and GPIO driver support
OpenCV camera image processing education fully supported
AI/ML data analysis and classification model labs included
Durable, education-grade PCB engineered for repeated use

Hardware

Hardware Specifications

Raspberry Pi 5 8GB & Camera Module V.3

Raspberry Pi 5 8GB

ProcessorBroadcom BCM2712, 2.4GHz Quad-core 64-bit ARM Cortex-A76
Cache512KB L2 per core, 2MB shared L3
Memory8GB LPDDR4X-4267 SDRAM
DisplayDual 4K 60Hz HDMI with HDR support
Wi-Fi2.4GHz & 5.0GHz 802.11ac
BluetoothBluetooth 5.0 / BLE
Camera InterfaceMIPI CSI (Camera Serial Interface)
PortsUSB 2.0/3.0, HDMI, Ethernet
Operating Voltage5V DC (USB-C), max 3A
GPIO3.3V output, 40-pin header

Camera Module V.3

Image SensorSony IMX708 CMOS, 12 megapixels
FeaturesHDR capture, built-in 3D HDR/DPC processing
Max Resolution4608 × 2592 @ 30fps
InterfaceMIPI CSI-2 direct data output

Sensors & Modules

Included Sensors & Modules

5 sensor inputs and 4 actuator outputs integrated on the PCB — start practicing immediately without any wiring.

Sensor Input

Temperature & Humidity Sensor

Operating voltage: 3.3V–5V
Temp: 0–50°C, Humidity: 20–90% RH
Size: 30 × 21mm

Sensor Input

Light Sensor (CDS)

CDS ambient light sensor
Operating voltage: 3.3V–5V, 15mA
Size: 31.5 × 14mm

Sensor Input

Ultrasonic Sensor (HC-SR04)

Range: 2–400cm
Operating voltage: 3–5.5V

Sensor Input

Collision & Vibration Sensor

Digital output
Operating voltage: 3.3V–5V

Sensor Input

Sound / Gas / Flame Sensor

Analog output
Operating voltage: 3.3V–5V

Sensor Input

Joystick

X, Y analog + push button
Size: 37 × 31 × 32mm

Actuator Output

Speaker (Buzzer)

Buzzer speaker module
Operating voltage: 3.3V–5V, Size: 26 × 21mm

Actuator Output

RGB LED

10mm RGB LED module
Operating voltage: 3.3V–5V, 10–60mA

Actuator Output

Stepper Motor (28BYJ-48)

Driver: ULN2003
Gear ratio: 1/64, Operating voltage: 5V

Actuator Output

OLED Display (0.96")

Driver: SSD1306, 128×64
I2C, Size: 2.7 × 2.8cm

Package Contents

What's in the Box

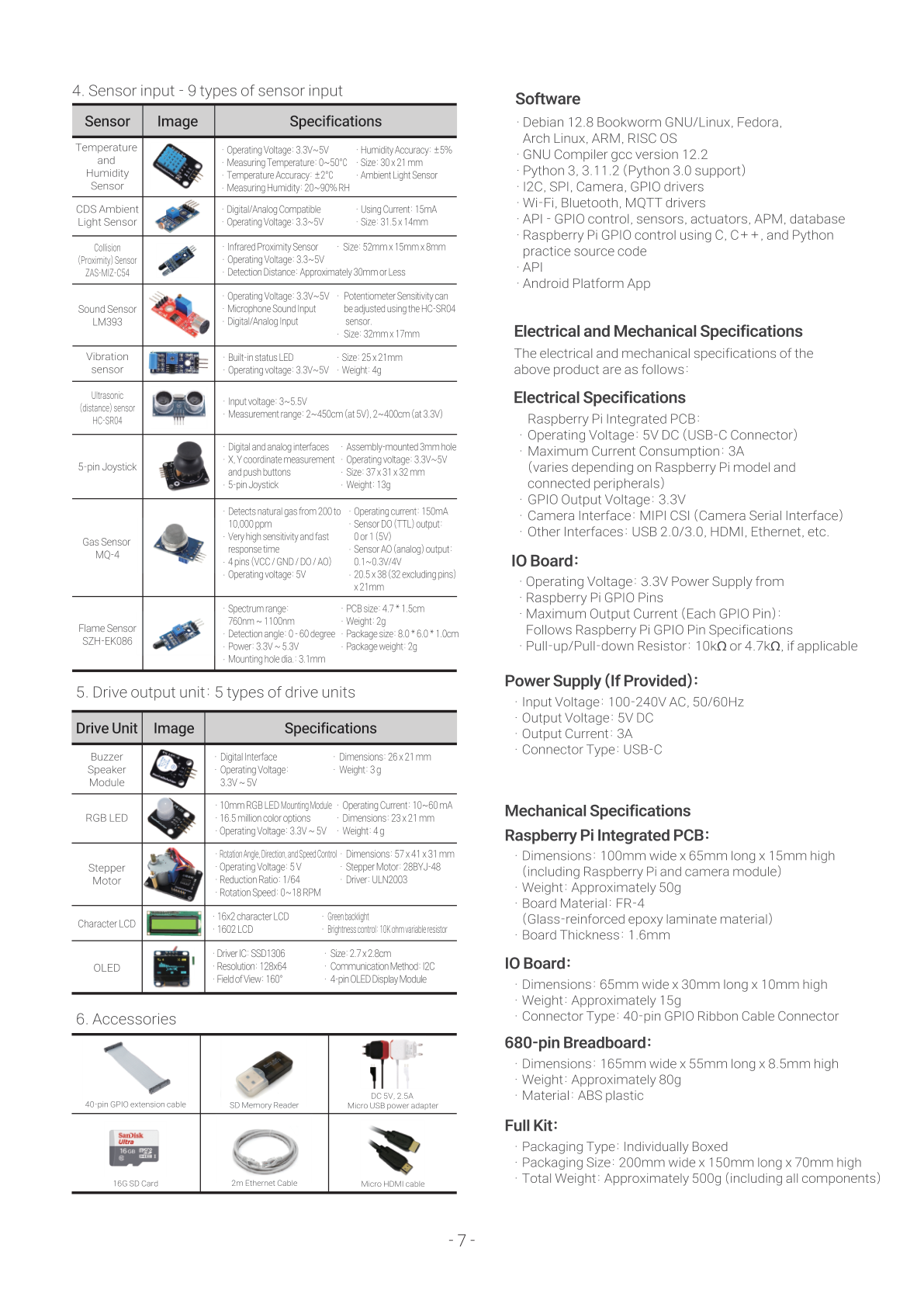

Raspberry Pi 5 Training Kit Package Contents
CategoryItemQty
Main BoardTraining Kit PCB (GT-RaspberryPi5)1
SBCRaspberry Pi 5 8GB1
CameraRaspberry Pi Camera Module V.31
Extension Cable40-pin GPIO Extension Cable1
Storage16GB SD Card + SD Memory Reader1 each
PowerDC 5V, 2.5A Micro USB Power Adapter1
Network2m Ethernet Cable1
DisplayMicro HDMI Cable1
📦 Dimensions
PCB: 100 × 65 × 15mm (incl. Raspberry Pi) · IO Board: 65 × 30 × 10mm
Packaging: 200 × 150 × 70mm · Total Weight: approx. 500g

Software

Software Support

OS: Debian 12.8 Bookworm GNU/Linux, Fedora, Arch Linux ARM, RISC OS
Compiler: GNU gcc 12.2 / Python 3.11.2 (Python 3.0+ supported)
Drivers: I2C, SPI, Camera, GPIO, Wi-Fi, Bluetooth, MQTT
APIs: GPIO control, sensor, actuator, APM, database
Languages: Full C, C++, Python hands-on source code provided
Vision: OpenCV camera image processing library included

Curriculum

Curriculum

A structured curriculum balancing theory and hands-on practice — from foundational coding through AI and IoT projects.

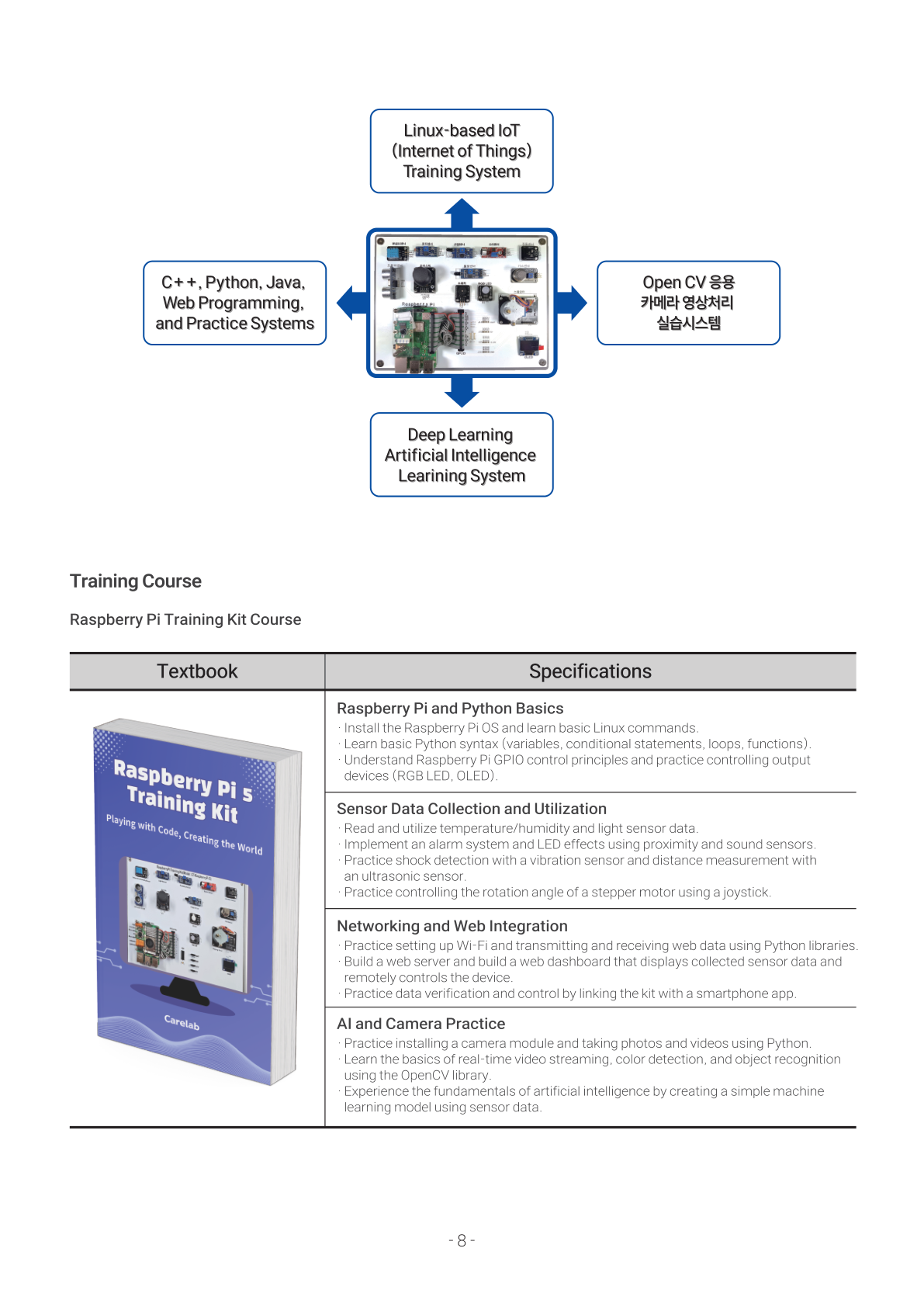

Raspberry Pi 5 Training Kit Textbook
1
Raspberry Pi OS Fundamentals
2
Python Basics & GPIO Control
3
Output Control — LED & Sensors (GPIO)
4
Electronic Circuit Lab
5
OpenCV Camera Applications
6
Image Processing Projects
7
AI / ML Data Analysis Lab
8
AI Classification Model Implementation
9
Wi-Fi Setup & Network Libraries
10
IoT Internet of Things Project
11
C, Python, Java Source Code Lab
12
Maker Integrated Capstone Project

Inquiry & Quote Request

We support bulk purchasing for schools, institutions, and makerspaces, as well as educational program consulting.

Contact Us Send Email
